item specific data

Item specific EPC data

If you are using the DEA version of the software (determined when you create your account – it is the same download) it is possible to record elements of EPC data at various stages of drawing the plan.

Certain standard items can have EPC information recorded about them. The items that have EPC data that can be recorded are:

Windows

All windows have the option to record:

  • The glazing type
  • The height
  • The draft proofing

To do this:

  • Tap on the window to bring up the popup menu
  • The main menu for windows contains the glazing options – select as appropriate
  • To access the height/draft proofing menu tap on Height/Proofing...
  • You will see some standard heights available with the option to add different ones as may be required

The width of the window will be used as it is drawn together with the height to calculate the window area and make adjustments to alternative walls as appropriate.

Please note that glazing areas for non-separated conservatories are treated differently. Please see Non-Separated Conservatories in heat loss and construction for more details.

Back to top

Doors

Any doors (except garage doors) have an option to record:

  • The glazing type
  • The height
  • The draft proofing
  • The number of openings

To do this, tap on the door to bring up the popup menu. You will see on the menu options for:

  • Glazing/Frame
  • Height/Proofing

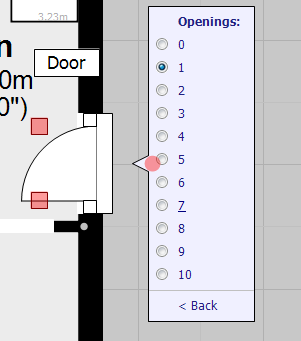

  • Openings

The menu will update accordingly giving you the options to record what you wish. Below in order: main menu, glazing, height/proofing, and openings menus.

The width of the door will be used as it is drawn together with the height to calculate the window area and make adjustments to alternative walls as appropriate.

Back to top

Radiators and other heaters

Radiators, storage heaters, etc will be counted (each counted separately) and the totals available in the EPC report. The number of radiators with TRVs is also counted. TRVs can be marked by tapping on the radiator and marking the option in the popup menu.

It is also possible to mark the radiators for use on the estate agent plan or not.

The radiator and other heater options available are:

  • Single/double radiator
  • Storage heater
  • Warm air vent
  • Heated towel rail
  • Electric heater
  • Water/oiled filled radiator

Back to top

Fireplaces

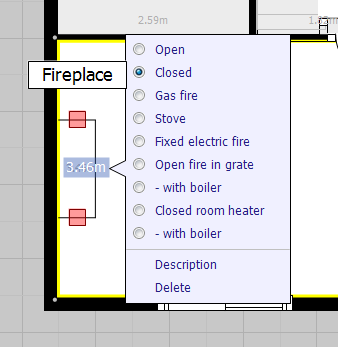

Once a fireplace has been added you can choose the type of fire/heater it is from the popup menu:

Back to top

Baths and shower

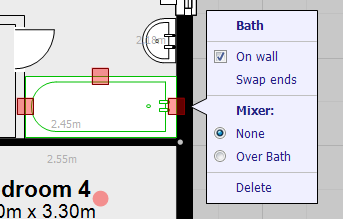

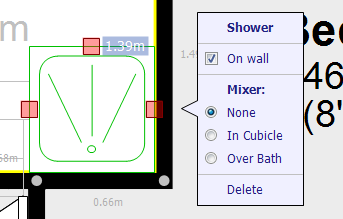

For baths and showers it is possible to record mixers. To do this simply select the bath/shower once it has been added to show the popup menu and there will be options visible to record a mixer.
